MSP430F413IPMR 8kB 16MHz Microcontrollers MCU Texas Instruments

Product Categories
Shenzhen Hongxinwei Technology Co., Ltd
Contact Now

MSP430F413IPMR 8kB 16MHz Microcontrollers MCU Texas Instruments

Brand Name : Texas Instruments

Model Number : MSP430F413IPMR

Certification : ROHS

Place of Origin : Philippines

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 50000pcs/week

Delivery Time : 2-3DAYS

Packaging Details : 1000pcs/reel

Program Memory Size : 8kB

Data Bus Width : 16 bit

ADC Resolution : No ADC

Maximum Clock Frequency : 16MHz

Number of I/Os : 48 I/O

Data RAM Size : 256 B

Operating Supply Voltage : 1.8 V to 3.6 V

Minimum Operating Temperature : - 40 C

Maximum Operating Temperature : + 85 C

Height : 1.4 mm

Length : 10 mm

Program Memory Type : Flash

Width : 10 mm

Data ROM Size : 256 B

Interface Type : UART

Number of Timers/Counters : 1 Timer

Processor Series : 4 Series

Factory Pack Quantity : 1000

Watchdog Timers : No Watchdog Timer

Unit Weight : 0.012088 oz

Contact Now

MSP430F413IPMRElectronic Integrated Circuits 16-bit Microcontrollers - MCU Texas Instruments Metering, industrial, portable equipment, sensing and instrumentation,

1.Low Supply-Voltage Range, 1.8 V to 3.6 V
Ultralow Power Consumption− Active Mode: 200 μA at 1 MHz, 2.2 V− Standby Mode: 0.7 μA− Off Mode (RAM Retention): 0.1 μA
Five Power-Saving Modes
Wake-Up From Standby Mode in Less Than 6 μs
Frequency-Locked Loop (FLL+)
16-Bit RISC Architecture, 125-nsInstruction Cycle Time
16-Bit Timer_A With Three or Five†Capture/Compare Registers
Integrated LCD Driver for 96 Segments
On-Chip Comparator
Brownout Detecto
Supply Voltage Supervisor/Monitor −Programmable Level Detection onMSP430F415/417 Devices Only

2.description
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuringdifferent sets of peripherals targeted for various applications. The architecture, combined with five low powermodes, is optimized to achieve extended battery life in portable measurement applications. The device featuresa powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum codeefficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in lessthan 6 μs.The MSP430x41x series are microcontroller configurations with one or two built-in 16-bit timers, a comparator,96 LCD segment drive capability, and 48 I/O pins.Typical applications include sensor systems that capture analog signals, convert them to digital values, andprocess the data and transmit them to a host system. The comparator and timer make the configurations idealfor industrial meters, counter applications, handheld meters, etc

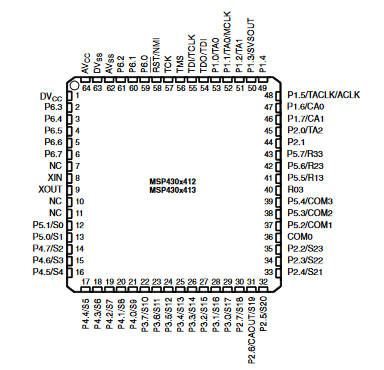

3.pin designation −MSP430x413

MSP430F413IPMR 8kB 16MHz Microcontrollers MCU Texas Instruments

4.functional block diagram − MSP430x413

MSP430F413IPMR 8kB 16MHz Microcontrollers MCU Texas Instruments

5.Why choose us?

100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service.
